Stock #: Q10260

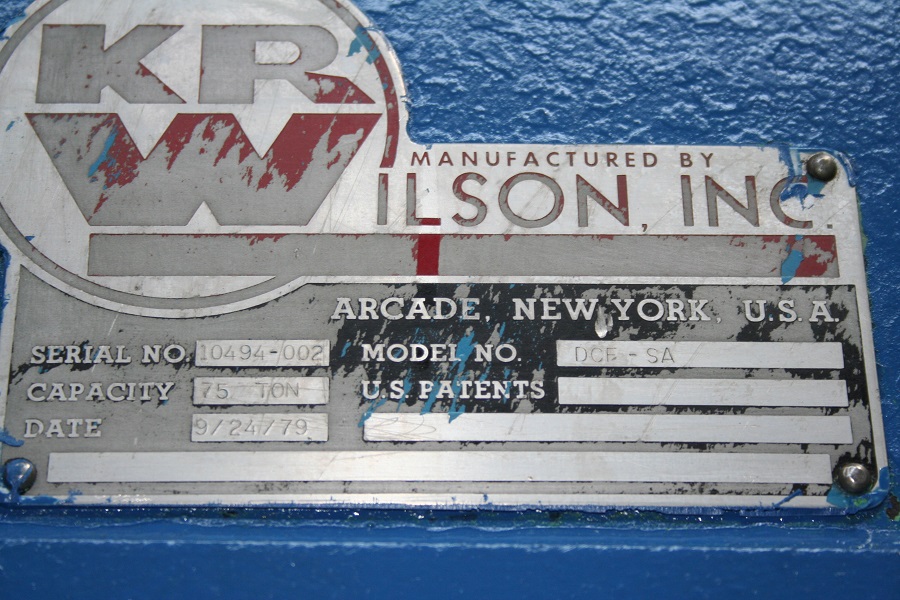

Brand: K.R. WILSON
Model: DCF-SA
Type: Presses, C-Frame
Condition: Used
Year: 1979
3 Palm Button Control, 1 Pressure Cylinder, 2 Guide Cylinders
SPECIFICATIONS:
Tonnage Capacity ..................................... 75 Tons
Stroke Length......................................... 16"
Daylight, Maximum..................................... 25"
Throat Depth.......................................... 26"

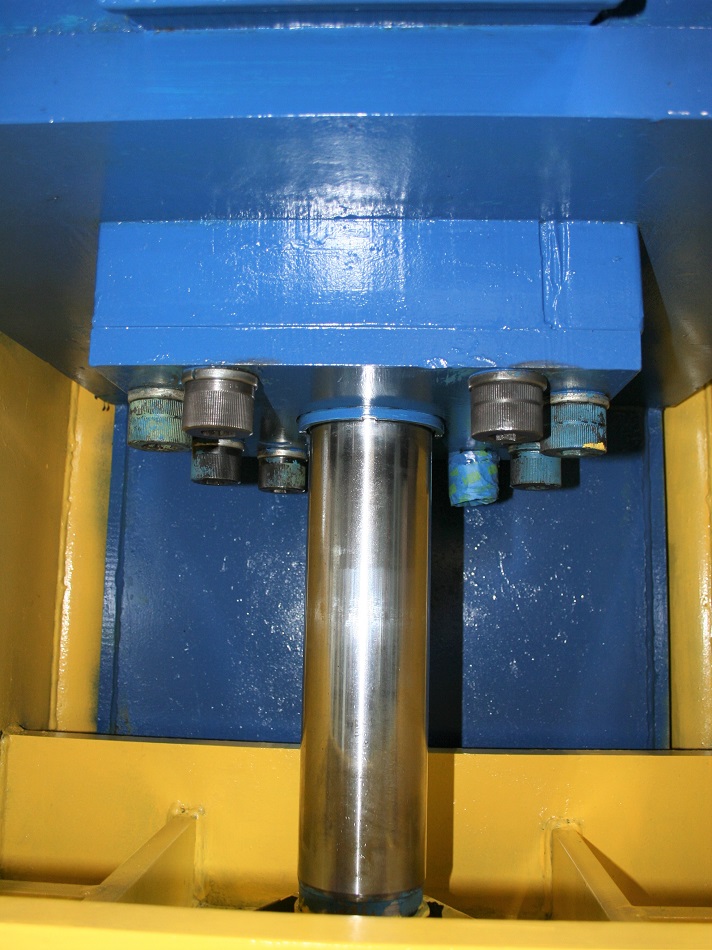

Ram Diameter.......................................... 4"
Working Surface Dimensions,...........Upper Platen.... 24"x 36"
Lower Platen.... 26" x 36"
Maximum Pressure...................................... 5000 PSI
Motor, Horsepower/RPM................................. 30 HP
Electrical System..................................... 240/3/60
Overall Dimensions, L x W x H......................... 79" x 48" x 119"
Weight................................................ 12,000lbs
