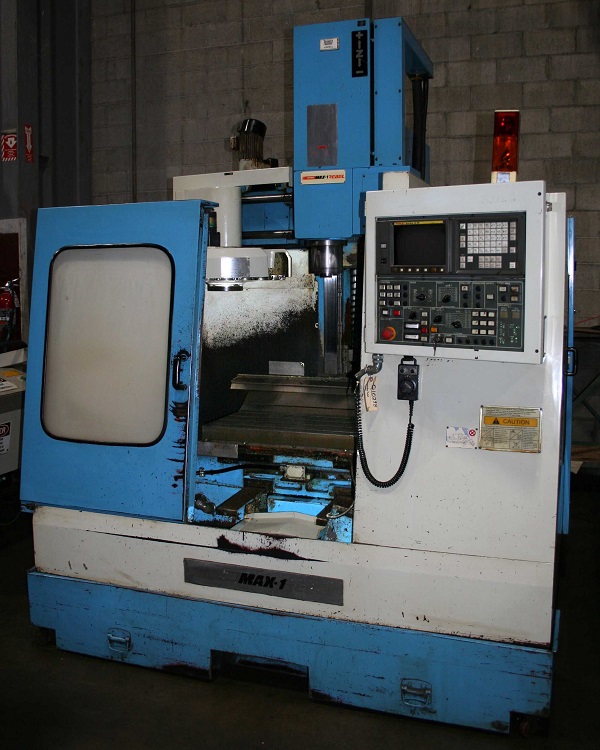

SUPERMAX MAX-1 REBEL CNC VERTICAL MACHINING CENTER

Stock #: Q10238

Brand: SUPERMAX
Model: MAX-1 REBEL
Type: Machining Centers, Vertical
Condition: Good
Year: 1998

Equipped With:

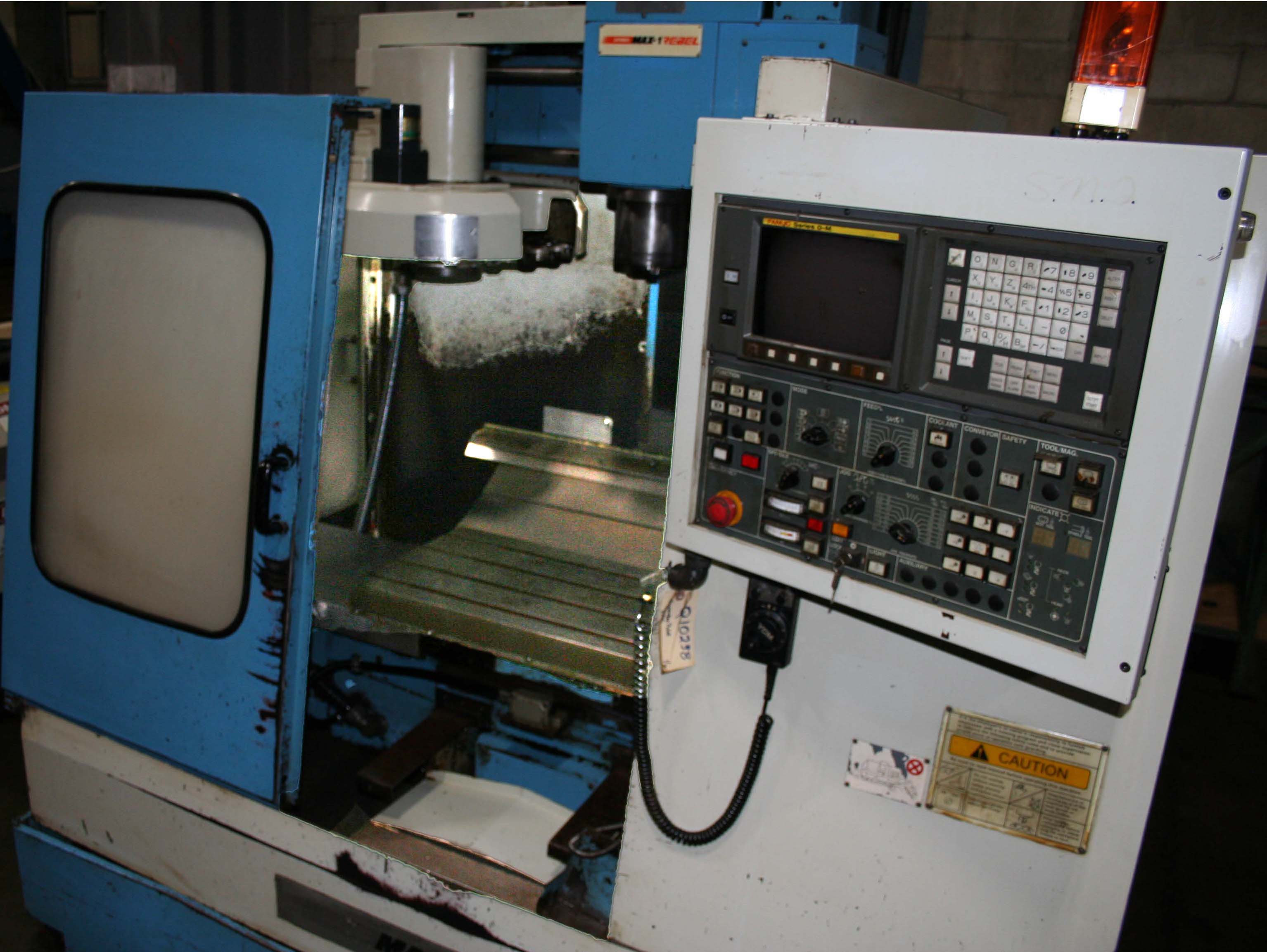

Fanuc 0M CNC Control, Hand Held Pendent Manual Pulse Generator, Heavy Duty Box Way Construction, 16 Station Automatic Tool Changer, Full Coolant Enclosure, RS-232 Port, Spindle Load Meter, Chip Pan and Coolant System.

SPECIFICATIONS:
Table Working Surface................................. 33.1"x 16.5"
X Travel (Longitudinal)............................... 25.59"
Y Travel (Cross)...................................... 15.7"
Z Travel (Vertical)................................... 18.1"
Table Work Load Capacity.............................. 770 LBS
Spindle Speeds........................................ 30-8000 RPM
Spindle Horsepower.................................... 10 HP
Spindle Taper......................................... #40 BT
Rapid Traverse X & Y.................................. 472 IPM
Rapid Traverse Z...................................... 394 IPM
Tool Storage Capacity................................. 20
Electrics............................................. 230/3/60
Approximate Dimensions................................ 83" x 87"
Approximate Height.................................... 98"
Approximate Weight.................................... 6600 LBS

CONDITION: Machine Appears to be in Excellent Condition!
