Stock #: Q10332
Brand: COLUMBUS JACK
Model: -
Type: Lifters, Jack
Condition: Excellent
Year: Not Specified
NOTE:

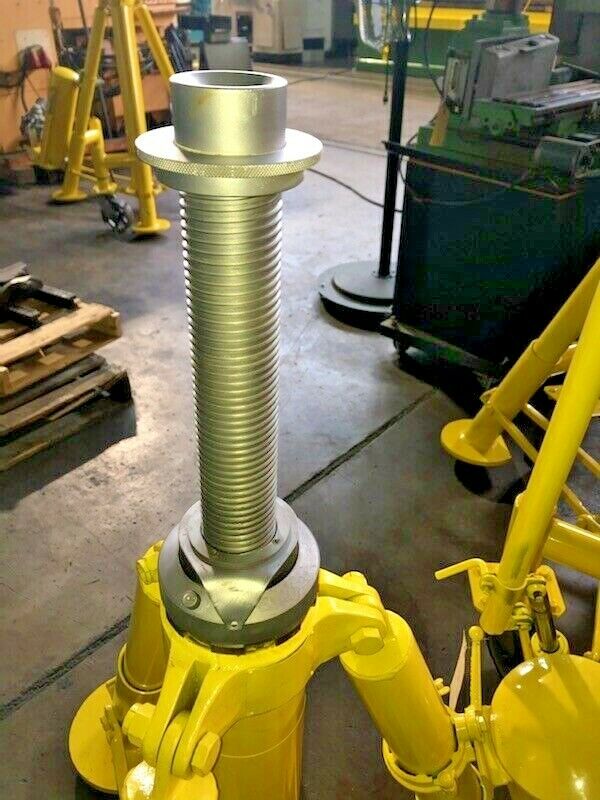

Set of (2) 20 Ton (each) Airplane Jacks: one Jack lifts by a Hydraulic Cylinder, the other side lifts by Hydraulic Cylinder with Remote Air Trigger. This means one person can lift up (2) Wings Simultaneously. Mechanical Safety Lockout Nut to Maintain Height if Hydraulic Lift Fails.
Specifications: |
|
---|---|
Total Lifting Capacity (2 Jacks) | 40,000 LBS (20 Tons each) |
Max Lifting Height (Screw Extended) | 109" |
Min Lifting Height (Screw Not Extended) | 54.5" |
Screw Travel | 14.5" |
Approximate Dimensions | 45" x 45" |
Approximate Height | 45" |
Approximate Weight | 1,200 LBS |
CONDITION: Airplane Jacks Appear to be in Excellent Condition !
