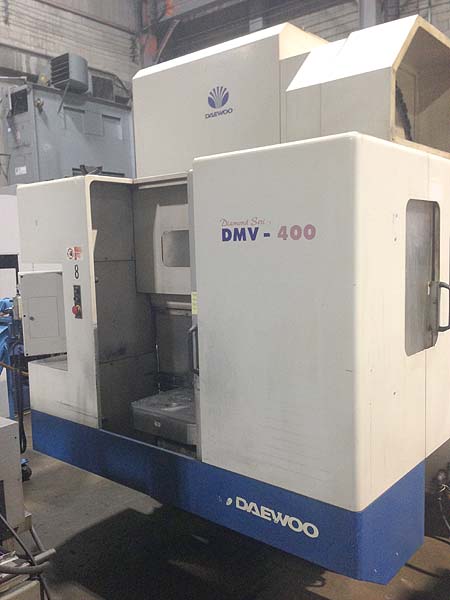

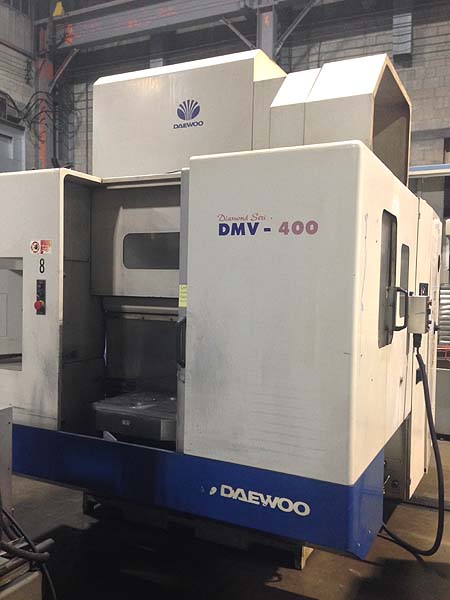

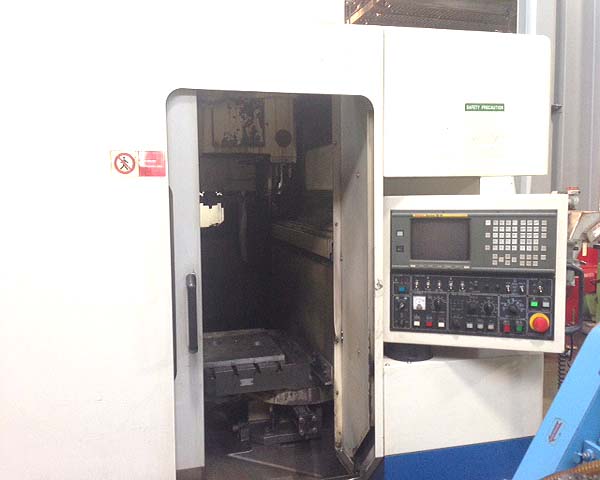

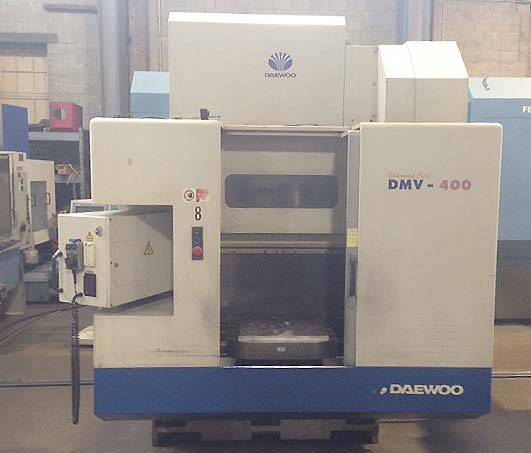

Stock #: K14674
Brand: DAEWOO
Model: DMV-400
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2000

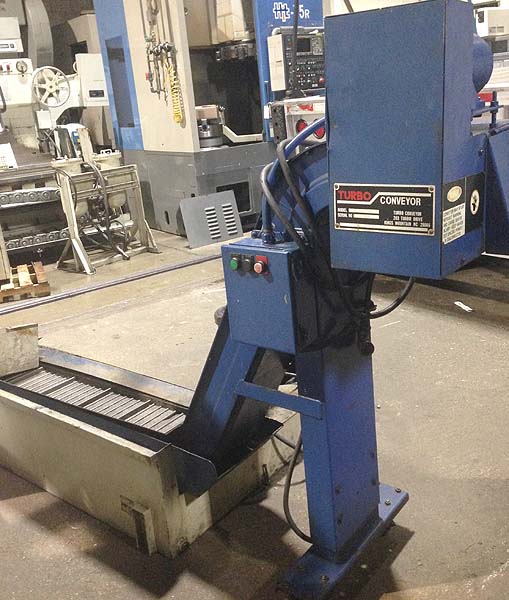

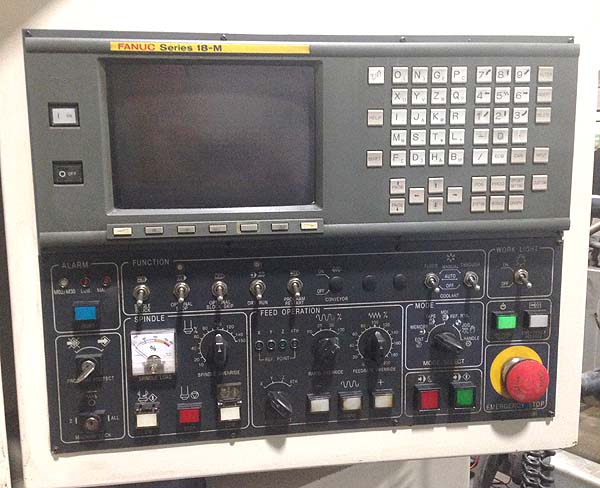

Fanuc 18M CNC w/ CRT, Remote Handwheel, (2) 21.5" x 25.5" Work Zones, Automatic Work Changer, Thru the Spindle Coolant, 30 Station Automatic Tool Changer, Cooljet Oil Filtration System, Kaukan Spindle Oil Cooler, Full Coolant Enclosure, Turbo Chip Conveyor, Coolant System.
Specifications: |
|
---|---|
CNC Control | yes |
Type of CNC Control | Fanuc 18M CNC Control |
# Axis | 3 |
Mounting Surface | (2) 21.5" x 25.5" |
Workpiece Change Setup | 0/180° |
Table Load Capacity | 660 LBS |
X-Axis (Longitudinal Travel) | 22" |
Y-Axis (Cross Travel) | 15.7" |
Z-Axis (Vertical Travel) | 22.4" |
Max Clearance Tabletop to Spindle Nose | 28.3" |
Min Clearance Tabletop to Spindle Nose | 5.9" |
Rapid Traverse Rate, All Axes | 1181 IPM |
Spindle Horsepower | 15 HP |
Spindle Speed Range | 20 - 10,000 RPM |
Spindle Taper | CAT 40 |
Coolant Thru Spindle | yes |
Automatic Tool Changer Capacity (ATC) | 30 |
Approximate Machine Dimensions | 124" x 110" |
Approximate Machine Height | 116" |
Approximate Machine Weight | 14,000 LBS |
CONDITION: Machine Appears to be in Excellent Condition !
