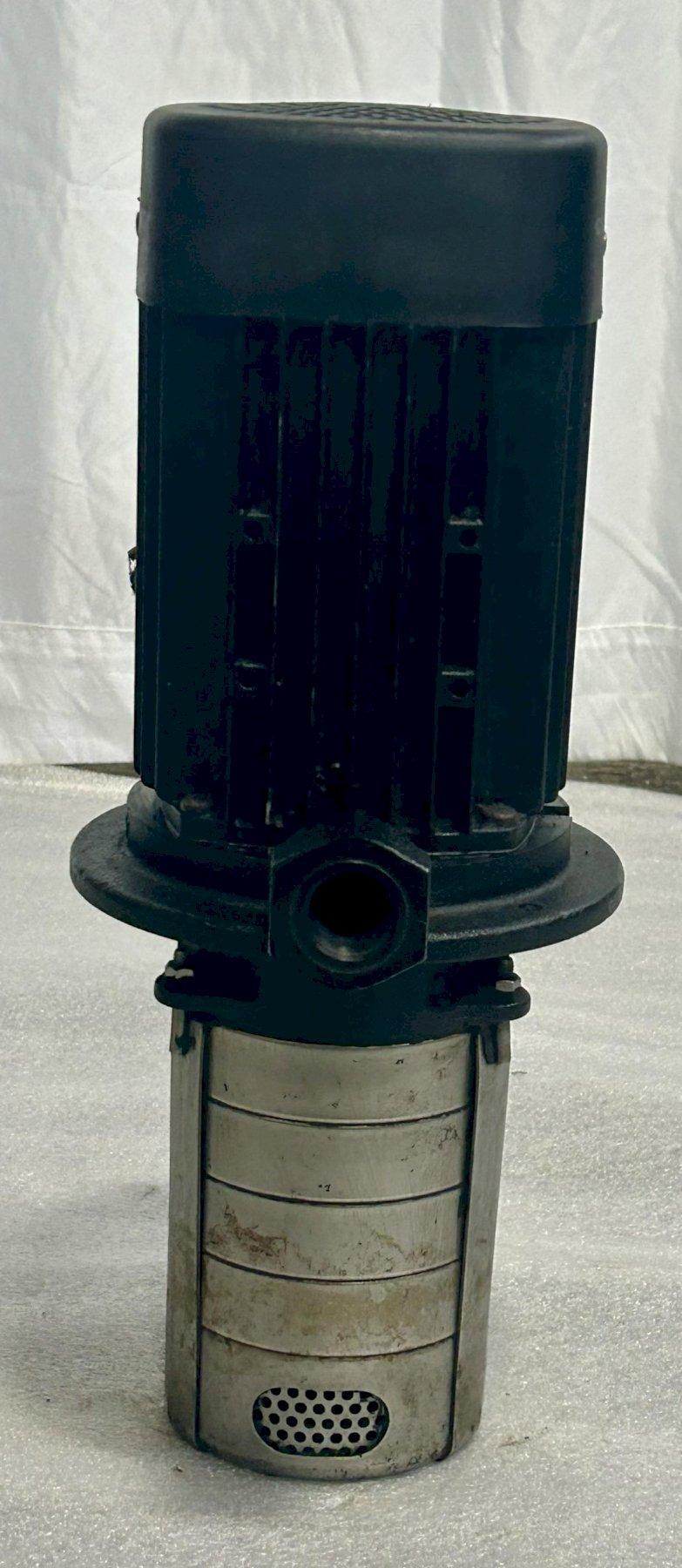

Stock #: Q11489
Brand: GRUNDFOS
Model: A-98993324-P3-1743-0004
Type: Pumps
Condition: Excellent
Year: Not Specified
Specifications: |
|
---|---|
Flow Rate (Gallons per Minute) | 26.4 GPM |
Feet of Head | 117.1 ft |
Chambers | 4 |
Impellers | 4 |
Code for Shaft Seal | AQQV |
Pump Housing Material | Cast Iron |
Impeller Material | Stainless Steel |
Max Ambient | 140° F |
Max Operating Pressure | 145.04 PSI |
Immersion Depth | 7.83" |
Type of Connection | NPT(F) |
Size of Outlet Connection | 3/4" |
Efficiency Class | IE3 / NEMA Premium |
Rated Power (P2) | 1.48 HP |
Frequency | 60 Hz |
Motor Protection | IP 54 |
Insulation Class | F (Max 155° C) |
Motor Speed | 3,465 RPM |
YY Voltage | 208-230 V |
Y Voltage | 460 V |
Approximate Dimensions | 20" x 14" |
Approximate Height | 10" |
Approximate Weight | 35 LBS |
CONDITION: This Pump Appears to be in Excellent Condition.
