Stock #: Q11471
Brand: ESAB

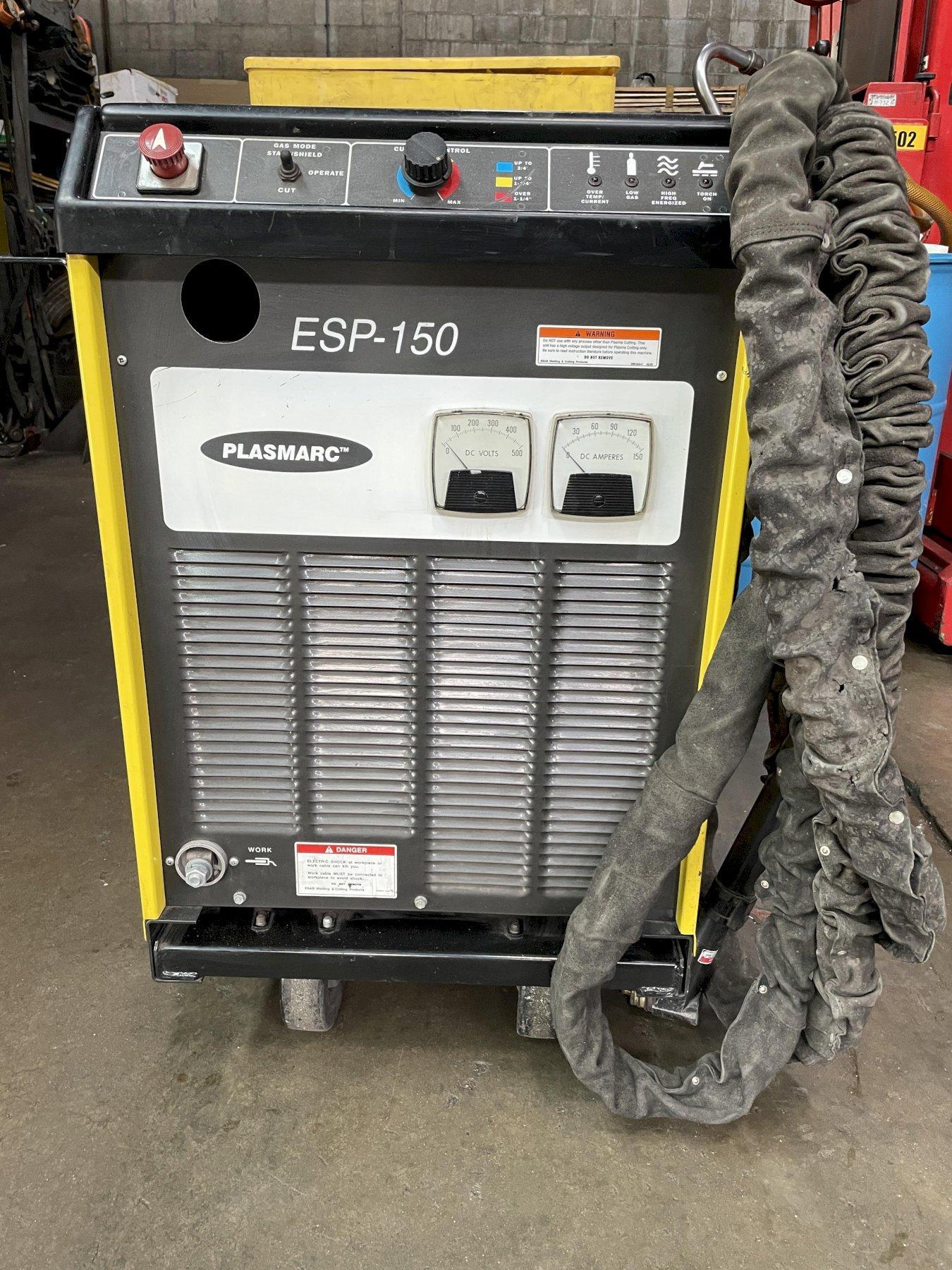

Model: ESP-150 PLASMARC
Type: Plasma Cutters
Condition: Excellent
Year: 2008
Liquid-Cooled PT-26 70° Torch with 25' Leather Sheath
Built-In Water Cooler
Versatility 230/460/575 and 220/380/415 volt 3 phase Inputs
Greater Variation- adjustable output - 25 to 150 A
Cuts with air, nitrogen, argon-hydrogen mixtures or nitrogen-hydrogen mixtures
Built In CNC Interface provides easy connection of automation applications.
Tr-21 Wheels and cylinder rack - all provided for portability
Spare torch nozzle parts

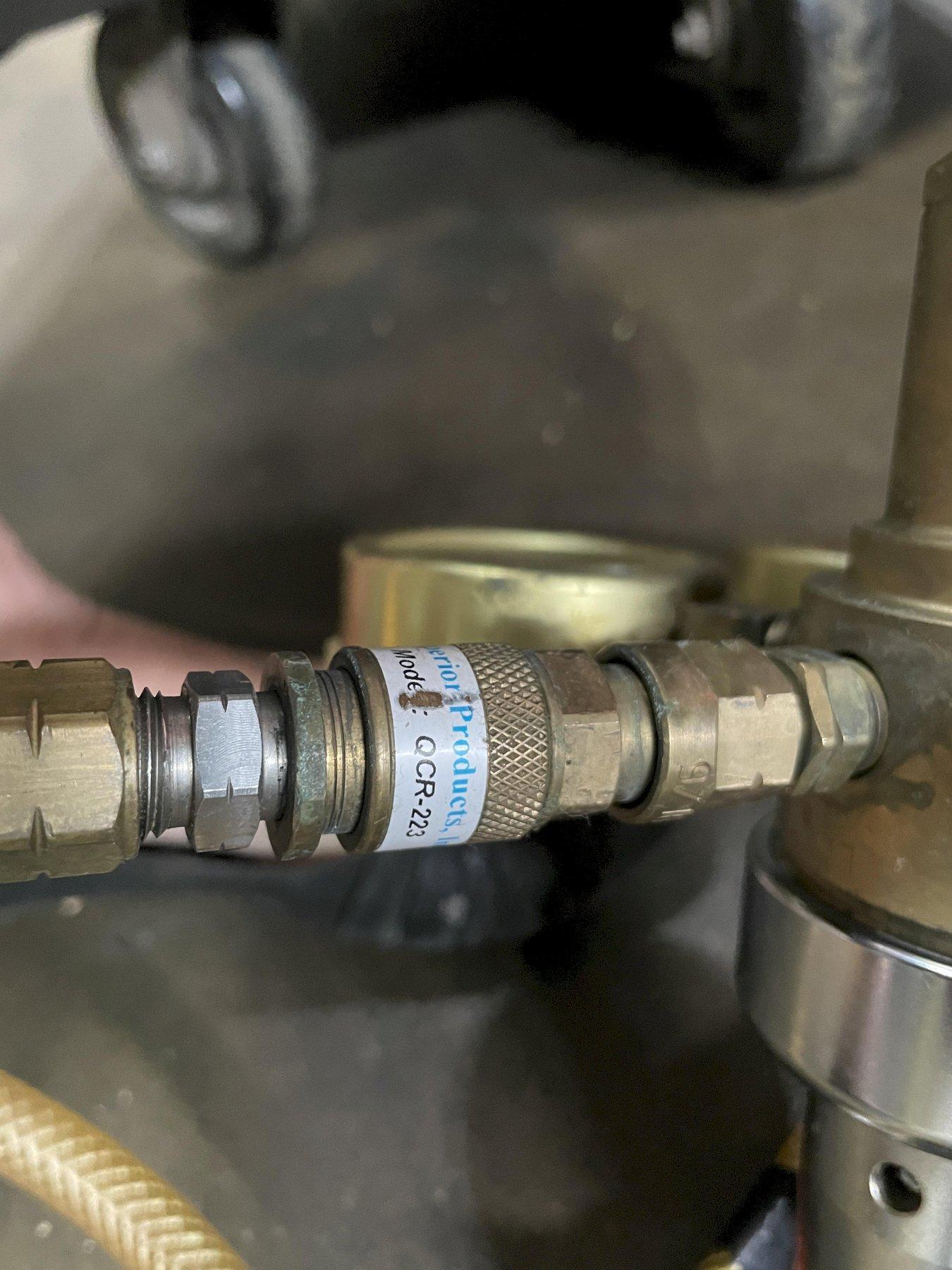

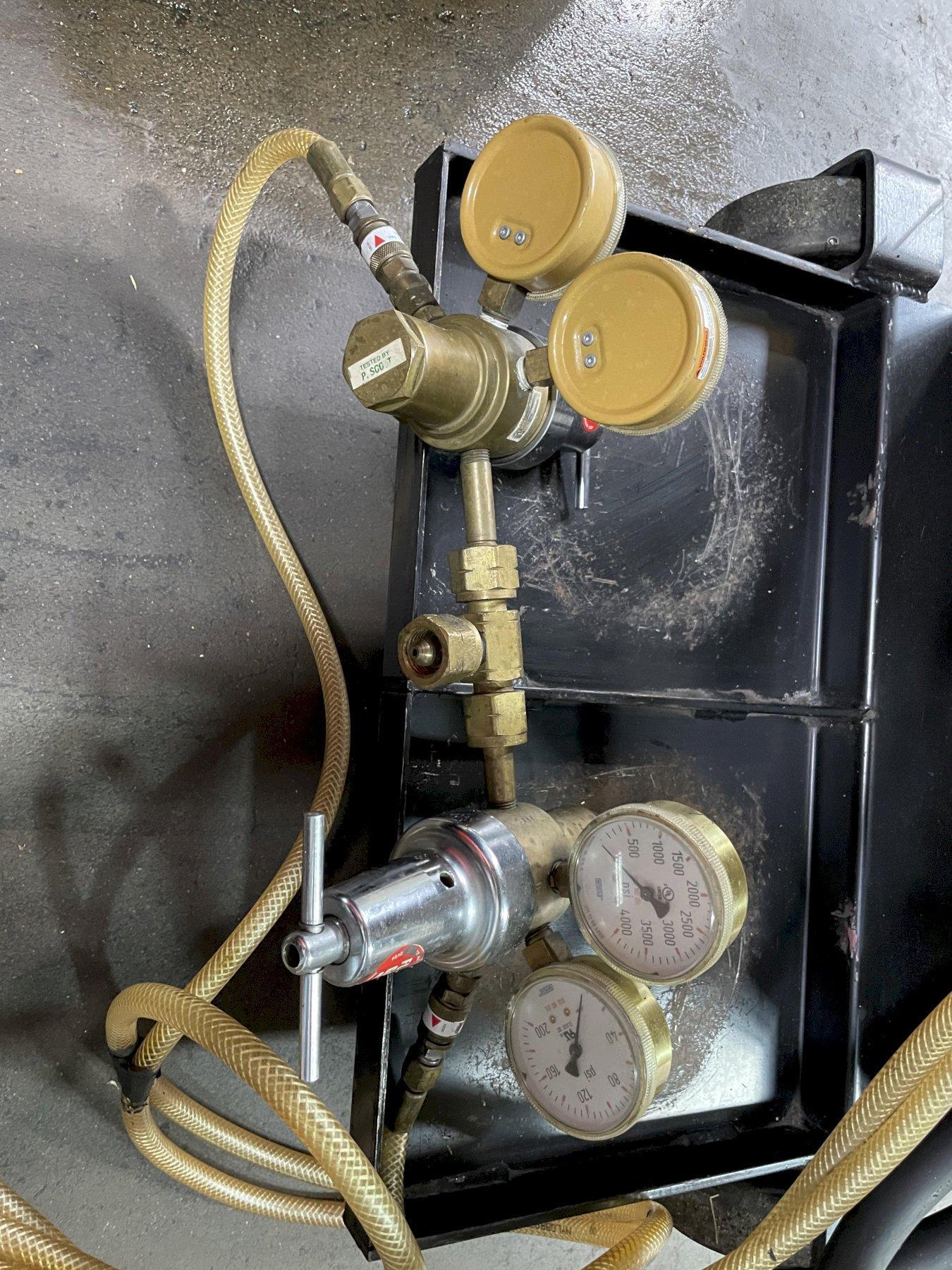

Regulators & gas hoses
Specifications: |
|
---|---|
Max Cut Thickness | 2" |
Output, 90% Duty Cycle | 150 A, 120 V |
Output, 100% Duty Cycle | 140 A, 120 V |
Open Circuit Voltage | 370 VDC |
Protection Class | IP 22 |
Electrics | 230/460/575 VAC, 3-Phase, 60 Hz |
Approximate Machine Dimensions | 57" x 22" |
Approximate Machine Height | 37" |
Approximate Machine Weight | 756 LBS |
CONDITION: This System Appears to be in Excellent Condition.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
---|
Liquid-Cooled PT-26 70° Torch with 25' Leather Sheath Built-In Water Cooler Versatility 230/460/575 and 220/380/415 volt 3 phase Inputs Greater Variation- adjustable output - 25 to 150 A Cuts with air, nitrogen, argon-hydrogen mixtures or nitrogen-hydrogen mixtures Built In CNC Interface provides easy connection of automation applications. Tr-21 Wheels and cylinder rack - all provided for portability Spare torch nozzle parts Regulators & gas hoses |
Specifications |
|
---|---|
Max Cut Thickness | 2" |
Output, 90% Duty Cycle | 150 A, 120 V |
Output, 100% Duty Cycle | 140 A, 120 V |
Open Circuit Voltage | 370 VDC |
Protection Class | IP 22 |
Electrics | 230/460/575 VAC, 3-Phase, 60 Hz |
Approximate Machine Dimensions | 57" x 22" |
Approximate Machine Height | 37" |
Approximate Machine Weight | 756 LBS |
CONDITION: This System Appears to be in Excellent Condition. |
